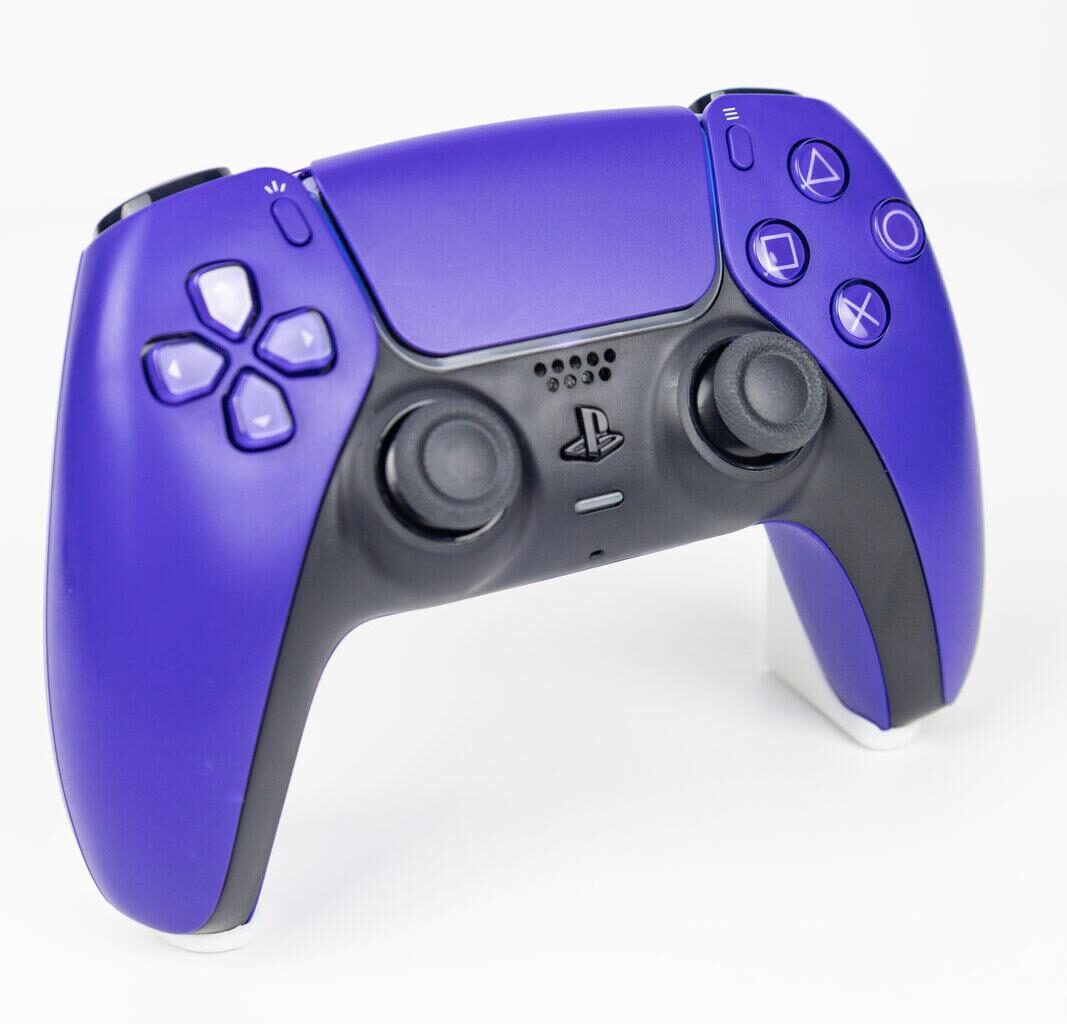

Stick drift is the single most common hardware failure on the PS5 DualSense controller. Your character walks on its own, the camera slowly pans without input, or your aim refuses to stay centred. It’s not a software bug, and no firmware update will permanently fix it. Stick drift is a mechanical problem baked into the design of every DualSense controller Sony has ever shipped.
The good news: it’s fixable. And with the right replacement modules, it’s fixable permanently.
What Causes Stick Drift?
Every DualSense controller from the BDM-010 through to the BDM-060 uses ALPS potentiometer-based joystick modules. These are the same fundamental design used in controllers across the industry - Xbox, Switch Pro, DualShock 4 - and they all share the same weakness.
Inside each joystick module, a metal wiper slides across a carbon resistive track as you move the stick. The controller reads the wiper’s position on the track to determine where the stick is pointing. When the stick is centred, the wiper sits at a specific point that registers as “neutral” - no input.
The problem is friction. Every time you move the stick, the wiper scrapes against the carbon track. Over time, this wears both surfaces down. Microscopic particles of carbon and metal accumulate inside the module, and the resistive surface develops inconsistencies. The electrical signal becomes noisy, and the controller starts reading phantom inputs - registering movement when the stick is sitting dead centre.
This typically begins to manifest after around 300 hours of play, though it varies enormously depending on playstyle. Games that demand constant stick movement - FPS titles, racing games, anything with camera control - accelerate wear significantly. Some controllers drift after three months. Others last years. But with potentiometer-based modules, drift isn’t a question of if - it’s a question of when.
Software Fixes (Temporary)
Before reaching for a soldering iron, there are a few things worth trying. None of these address the root cause, but they can buy you time.
Dead Zone Adjustment
Many PS5 games allow you to adjust the analogue stick dead zone in their settings. Increasing the dead zone creates a larger area around centre where input is ignored. If your drift is minor, bumping the dead zone from 5% to 10-15% can mask the problem entirely. The trade-off is reduced sensitivity - you’ll need to push the stick further before it registers movement.
Controller Reset
Press and hold the small reset button on the back of the controller (inside the pinhole near the L2 trigger) for five seconds using a paperclip or SIM eject tool. This resets the controller’s Bluetooth pairing and internal calibration. It won’t fix mechanical wear, but it can help if the drift is being caused by a software glitch rather than hardware degradation.
Firmware Updates
Sony periodically releases controller firmware updates through the PS5 system settings. These can include calibration improvements, though Sony doesn’t publish detailed release notes. Keeping your controller firmware up to date is worth doing regardless, but don’t expect it to fix hardware-level drift.
Cleaning with Compressed Air
If drift has appeared suddenly rather than gradually, dust or debris under the thumbstick cap might be the culprit. Lift the edge of the rubber thumbstick cap slightly and spray compressed air around the base of the stick. Rotate the stick fully while spraying. This can dislodge particles that are interfering with the potentiometer contacts.
Be cautious with isopropyl alcohol - while some guides recommend applying it directly to the stick base, excess liquid can damage the potentiometer contacts or other components if it seeps too far into the module.
Hardware Fix: Joystick Module Replacement
If software adjustments aren’t cutting it, the permanent fix is replacing the joystick module itself. You have two options here: a like-for-like ALPS potentiometer replacement, or an upgrade to contactless sensing technology.
Option 1: OEM Potentiometer Replacement
You can desolder the existing ALPS module and solder in a new one. Replacement ALPS modules are cheap (under £1 per unit from Alibaba in bulk) and restore the controller to factory behaviour. The downside is obvious - you’re replacing a worn potentiometer with a new potentiometer that will eventually wear out too. It’s a reset, not a permanent fix.
Option 2: TMR Joystick Module Upgrade
TMR (Tunnel Magnetoresistance) modules represent the permanent solution. Instead of a metal wiper on a carbon track, TMR modules use a magnet attached to the stick and a magnetoresistive sensor on the PCB. The sensor detects the magnet’s position through changes in magnetic field - no physical contact whatsoever.
No contact means no friction. No friction means no wear. No wear means no drift. The module will outlast the rest of the controller.

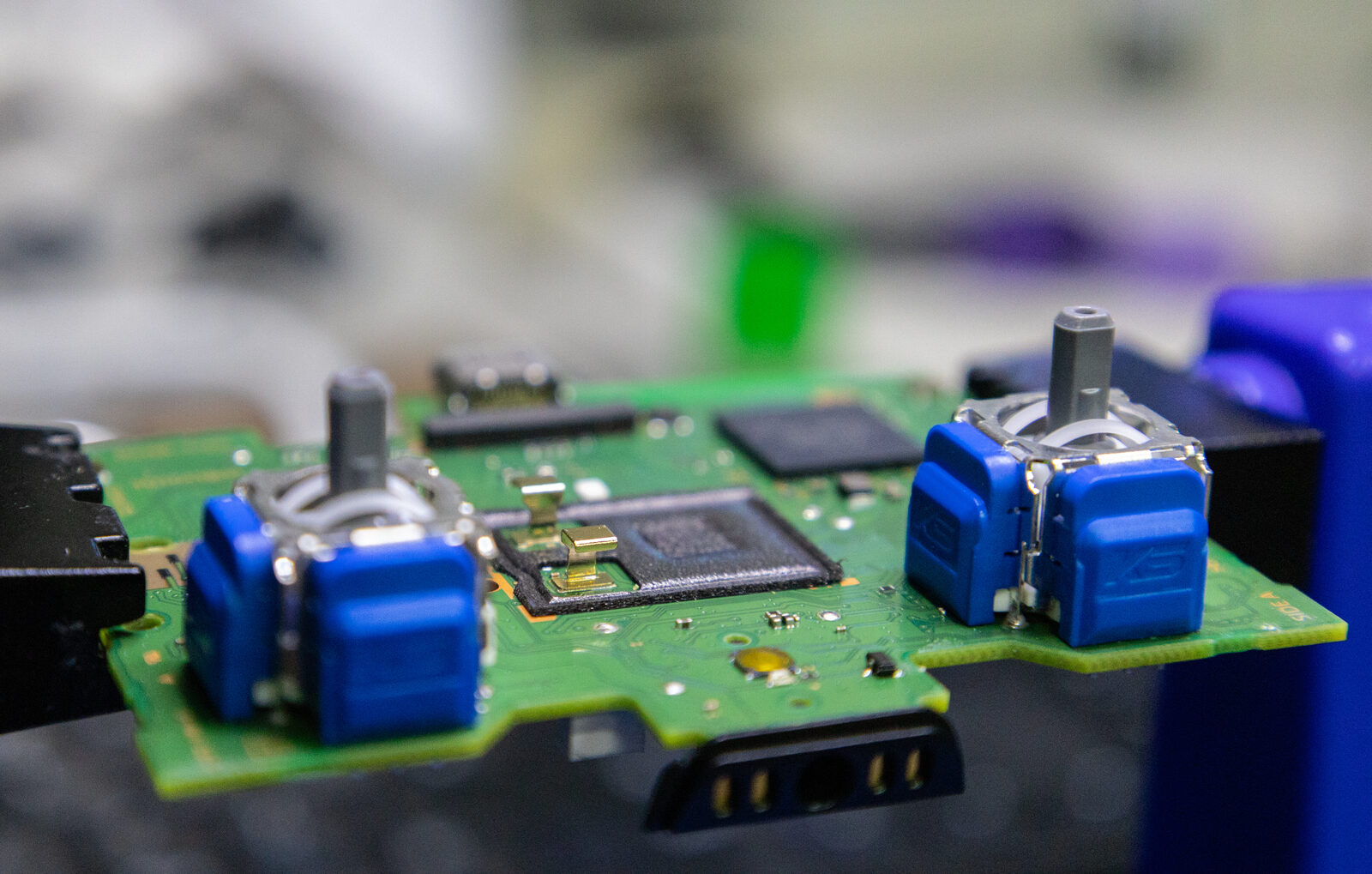

TMR modules are a direct footprint replacement for the ALPS potentiometers, meaning they solder into the same 14 pads on the DualSense motherboard. This works across every BDM revision - the joystick module footprint has remained consistent from BDM-010 through BDM-060. It’s the one repair where you don’t need to worry about which controller version is on your bench.

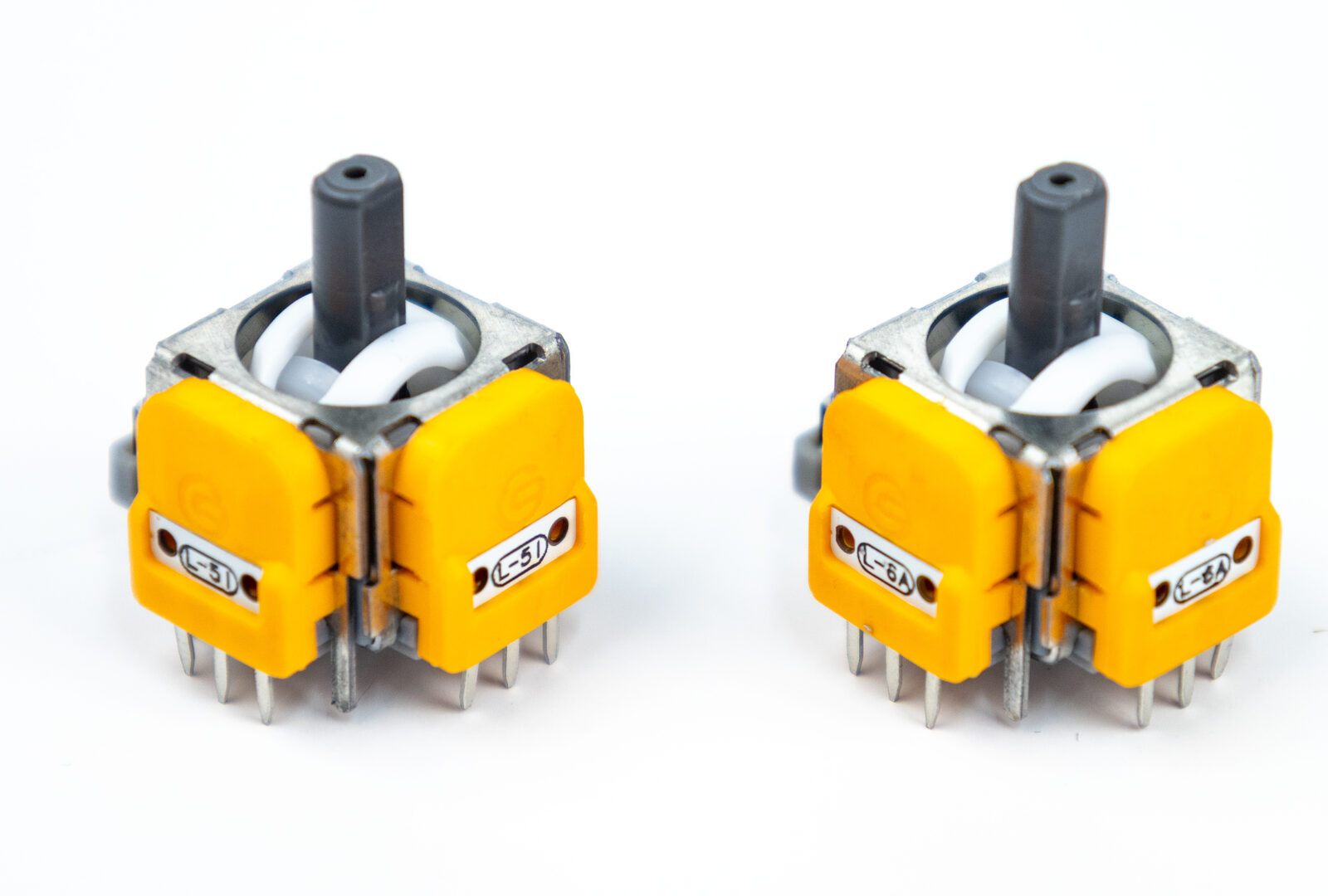

TMR vs Hall Effect
You’ll see both TMR and Hall Effect modules marketed for DualSense repair. Both are contactless magnetic sensing technologies, and both eliminate drift. The practical differences:
| Feature | TMR | Hall Effect |
|---|---|---|
| Sensing mechanism | Tunnel magnetoresistance | Hall voltage |
| Drift prevention | ✅ Contactless | ✅ Contactless |
| Power consumption | Lower | Higher |
| Signal precision | Higher sensitivity | Good |
| Magnetic interference resistance | Better (anti-interference design) | Adequate |
| Price (per pair) | ~£8–15 | ~£5–10 |
| Dead zone requirement | 2-3% typical | 2-3% typical |
TMR is the newer technology and generally preferred for DualSense repairs. GuliKit’s TMR modules are the most widely used, and Ginfull offers a budget-friendly alternative that performs well. Both brands produce modules with anti-interference structures that prevent the DualSense’s magnetic adaptive triggers from interfering with the joystick sensing.
One thing to be aware of with both TMR and Hall Effect modules: most games benefit from a small in-game dead zone of 2–3% after installation. This is a conservative recommendation from module manufacturers rather than a hard requirement - unlike potentiometer drift, it stays constant and doesn’t worsen over time, and some players run lower depending on module quality and game support.
The Repair Process
Replacing DualSense joystick modules is an intermediate-level soldering job. Here’s what you need and what to expect.
Tools Required
You’ll need a temperature-controlled soldering iron (or ideally a hot air rework station), solder wick or a desoldering pump, quality flux, leaded solder (63/37 for easier work), a set of small Phillips screwdrivers, a plastic spudger or opening pick, and tweezers. A PCB holder or helping hands makes the job significantly easier.
If you’re doing this commercially, a hot air station is strongly recommended. Desoldering 14 pins per module with just an iron and wick is doable but slow. Hot air makes it a two-minute job per module.
Time Estimate
For a complete drift repair (both sticks), expect around 45 minutes to an hour on your first attempt. With practice, this drops to 20-30 minutes per controller. The bulk of the time is disassembly and reassembly - the actual soldering takes 5-10 minutes per module once you’re comfortable with it.
Key Steps
The repair follows this general flow: remove the four Phillips screws from the back of the controller, carefully separate the shells (mind the ribbon cables), disconnect the battery and ribbon cables, remove the motherboard, desolder the old module(s), clean the pads, solder in the new module(s), reassemble, and calibrate.
The most critical steps are pad cleaning (flux and wick until the pads are bright and flat) and ensuring the new module sits flush against the PCB before soldering. A module that’s tilted even slightly will cause the stick to sit off-centre, which manifests as - you guessed it - drift.
Post-Repair Calibration
After replacing the modules, you’ll need to calibrate the new joysticks. Connect the controller to a PC via USB and use a joystick calibration tool (Windows’ built-in “Set up USB game controllers” works, or use a browser-based tool like Gamepad Tester). Verify that both sticks centre correctly and reach full range of motion in all directions.
If the sticks don’t centre properly, check that the modules are seated flat against the PCB and that all 14 solder joints per module are clean.
Warranty and Consumer Rights
Sony’s standard warranty covers DualSense controllers for 12 months from purchase. Stick drift that develops within this period is covered, and Sony will replace or repair the controller at no charge.
In the UK and EU, you may have additional protection under consumer rights legislation. The Consumer Rights Act 2015 (UK) provides that goods must be of satisfactory quality and last a reasonable amount of time. If stick drift develops within two years of purchase, you may be entitled to a repair or replacement from the retailer, regardless of the manufacturer’s warranty period.
It’s worth noting that opening the controller to perform a repair - whether a TMR upgrade or otherwise - will void the manufacturer warranty. If your controller is still within warranty, consider the warranty claim route first.
Preventing Drift (Delaying the Inevitable)
While you can’t prevent potentiometer wear entirely on stock modules, a few habits can extend their lifespan. Avoid resting heavy objects on the controller where they press against the sticks. Store the controller on a flat surface rather than balanced on the sticks. Consider using a controller case for transport. And periodically clean around the stick bases with compressed air to prevent debris ingress.
For anyone serious about eliminating drift long-term, the TMR upgrade remains the only permanent hardware solution. It’s a one-time investment in parts and labour that removes the problem from the equation entirely.
